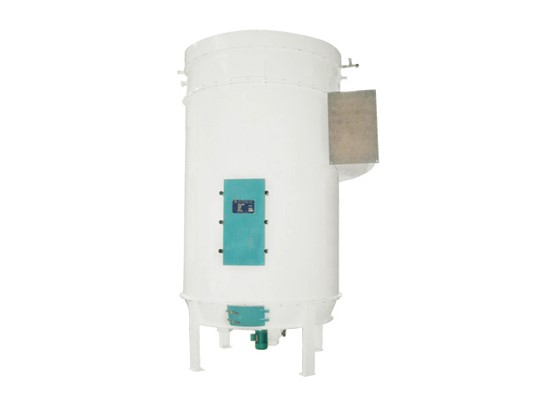

TBLM系列脉冲布筒滤尘器是我公司设计的一种 的除尘设备，该产品排灰结构合理、效果好、机体高度低，广泛用于粮食、食品、化工、建材、医药、冶金、矿山等工业粉尘的清理、净化回收。
创盈 TBLM series pulse cloth drum dust filter is a kind of advanced dust removing plant designed by our company, featured with reasonable dust discharge structure, satisfactory effect and low equipment body. It is widely used in grain, food, chemical engineering, construction materials, medicine, metallurgy, mining and other industries for dust cleaning, purification and recycling.
特点：
创盈
Characteristics:
创盈 1、气包结构，耐压性强，无漏气情况存在；
It is of air pocket structure, with strong pressure resistance performance, free of air leakage phenomenon;
2、电磁阀控制吹喷清袋，无机械磨损和误差；
创盈 Air pocket jetting is controlled by solenoid valve, free of mechanical wear and error;
创盈 3、挂钩式布筒，方便不同更换；
创盈 Hook type cloth drum provides convenience for replacement;
创盈 4、可增设独立进风箱体和锥体式出灰形式，有效提高清理效果
创盈 A separate inlet box and conical dust discharge structure can be added to improve the cleaning effect greatly
技术参数：
Technical parameters:
|
型号 Model |
滤袋长度（mm） Filter bag length (mm) |
创盈 处理风量（m³/h） 创盈 Air volume (m³/h) |
创盈 过滤面积（m³） 创盈 Filtering area (m³) |
创盈 关风器功率（kw） 创盈 Power of airlock (kw) |
刮板电机功率（kw） Power of scraper motor (kw) |
低压泵型号 创盈 Low pressure pump model |
创盈 重量（kg） Weight (kg) |
||
|
A |
B |
C |
|||||||
|
创盈 TBLM-26 |
创盈 1800 2000 创盈 2400 |
1030-5150 创盈 1140-5740 1370-6890 |
17.2 创盈 19.1 创盈 23.0 |
0.75 |
|
ZYMB40 |
710 749 794 |
573 663 620 |
672 705 730 |
|
创盈 TBLM-39 |
1800 2000 2400 |
创盈 1540-7700 创盈 1720-8610 创盈 2070-10390 |
25.7 28.7 创盈 34.6 |
1.1 |
1.5 |
创盈 ZYMB40 |
创盈 1030 1080 1120 |
823 860 915 |
781 创盈 1025 1072 |
|
TBLM-52 |
1800 2000 2400 |
创盈 2110-10550 2300-11450 创盈 2770-10400 |
创盈 35.2 创盈 38.2 46.1 |
1.1 |
1.5 |
ZYMB40 |
创盈 1230 创盈 1500 创盈 1700 |
998 创盈 1030 1124 |
1169 创盈 1218 1286 |
|
创盈 TBLM-78 |
创盈 1800 创盈 2000 2400 |
3100-15460 创盈 3238-17200 4146-20730 |
51.5 创盈 57.3 69.1 |
1.1 |
1.5 |
ZYMB60 |
1720 创盈 1800 2000 |
创盈 1387 1453 1552 |
1634 1721 创盈 1798 |
|
创盈 TBLM-104 |
创盈 1800 2000 创盈 2400 |
4116-20580 4590-22950 创盈 5526-27630 |
68.6 创盈 76.5 92.1 |
1.1 |
1.5 |
创盈 ZYMB80 |
2200 创盈 2500 3000 |
1640 创盈 1910 创盈 2220 |
创盈 2000 2320 2650 |
|
创盈 TBLM-130 |
创盈 1800 2000 创盈 2400 |
5292-26460 5934-29670 7056-35280 |
88.2 98.9 创盈 117.6 |
1.1 |
1.5 |
ZYMB120 |
2870 创盈 3000 创盈 3500 |
创盈 2132 2233 2384 |
创盈 2610 2735 2860 |
|
创盈 TBLM-168 |
创盈 1800 创盈 2000 创盈 2400 |
创盈 6836-34170 7596-37980 9114-45579 |
创盈 113.9 创盈 126.6 151.9 |
创盈 1.5×2 |
2.2 |
创盈 ZYMB140 |
创盈 3540 3721 3925 |
2652 创盈 2793 2994 |
创盈 3225 3377 3547 |
