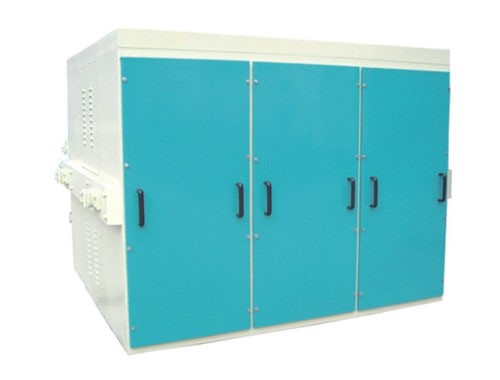

该机是制粉行业的主要设备之一，该机主要用于研磨后物料的筛理和分级，也可以作为检查筛使用，还可用于医药、化工、塑料、制酒等行业粉末状物料的处理和分级。
This type of equipment is one of the main equipment in flour milling industry, which is mainly used for sifting and grading of the ground materials. It can also be used as an inspection sieve, as well as for handling and grading of powder materials in medicine, chemical engineering, plastic, brewing and other industries.

特点：
Characteristics:

1、 与物料接触的所有表面均有有效隔离，以确保搞卫生条件；
创盈 All surfaces contacting the materials are isolated effectively to ensure satisfactory sanitary conditions;

2、 物料通道易于接触，便于清理；
创盈 It is easy and convenient to contact and clean the material channel;

3、 筛框易于安装和拆卸；
创盈 It is easy to install and disassemble the screen frame;

4、 具有强大的筛理面积和佳空间利用能力；
Large sifting area and optimum space utilization ability can be provided;

5、 高方平筛采用优质玻璃钢吊杆；
High-quality fiberglass suspender is adopted;

6、 筛体内部密封条完整，各连接处密封良好；
创盈 Sealing strips in screen body are complete, and all joints are well sealed;

技术参数：
创盈 Technical parameters:

型号Model	筛格规格（cm） Spec. of lattice (cm)	筛理面积（㎡） Sifting area (㎡) 标准筛格 创盈   Standard lattice	筛格总高（mm） Total height of lattice (mm) 不含筛底 创盈   Excluding sieve bottom	主轴转速（r/min） Main shaft speed (r/min)	回转直径（mm） 创盈 Turning diameter (mm)	电机功率（kw） 创盈 Motor power (kw)	设备质量（kg） Equipment weight (kg)	外形尺寸（长×宽×高）mm Boundary dimension (L × W × H) mm
FSFC4×18-24	634×634	20.4	1400	240-245	60-85	3	创盈 2500	1797×2400×2200
创盈 FSFC6×18		创盈 30.4	1400			3	3500	创盈 2563×2400×1650
FSFC6×24		创盈 40.4	1860			4	5300	2563×2400×2200
创盈 FSFC6×34		创盈 47.1	2030			5.5	6200	创盈 2563×2580×2780
